*Items are sold in pairs
*Crossovers not Included
Crossover required: Ciare CF 102 Passive

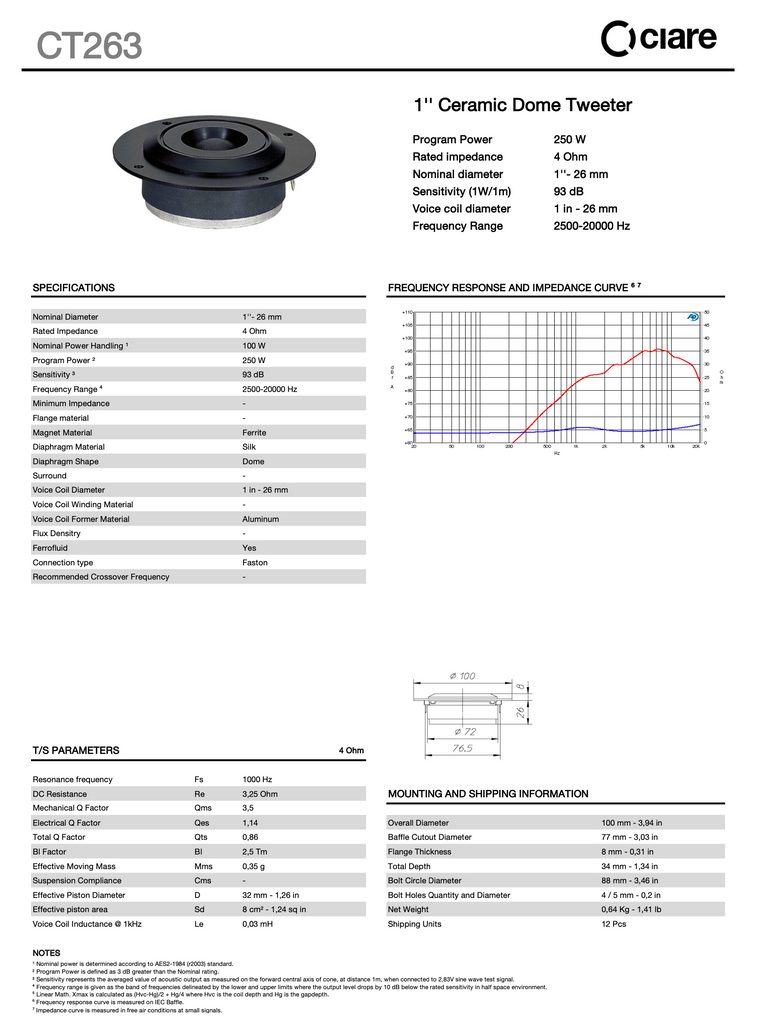

Specification
| Nominal Diameter | 1''- 26 mm |
| Rated Impedance | 4 Ohm |
| Nominal Power Handling 1 | 100 W |
| Program Power 2 | 250 W |
| Sensitivity 3 | 93 dB (1W/1m) |

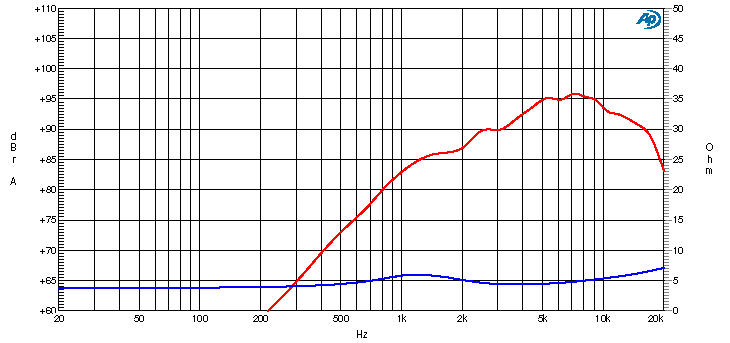

| Frequency Range 4 | 2500-20000 Hz |
| Minimum Impendance | - |
| Basket Material | - |
| Magnet Material | Ferrite |
| Cone Material | Silk |
| Cone Shape | Dome |
| Surround | - |
| Suspension | - |
| Voice Coil Diameter | 1 in - 26 mm |
| Voice Coil Winding Material | - |
| Voice Coil Length | 1,7 mm - 0,07 in |
| Voice Coil Former Material | Aluminum |
| Connection Type | Faston |
| Ferrofluid | Yes |
| Magnet Gap Height | 3 mm - 0,12 in |
| Max. Peak to Peak Excursion Xlim | - |
| Efficiency Bandwidth Product EBP | 877 |
| Recommended Loading | - |
| Volume/ Tuning Frequency | |
| Maximum Recommended Frequency | - |
| Version - Part Code |
Parameters
| Resonance Frequency | 1000 Hz |
| DC Resistance | 3,25 Ohm |
| Mechanical Q Factor | 3.5 |
| Electrical Q Factor | 1.14 |
| Total Q Factor | 0.86 |
| BI Factor | 2,5 Tm |
| Effective Moving Mass | 0,35 g |
| Equivalent Cas air Loaded | - |
| Suspension Compliance | - |
| Effective Piston Diameter | 32 mm - 1,26 in |
| Effective Piston Area | 8 cm² - 1,24 sq in |
| Max. Linear Excursion 5 | - |
| Voice Coil Inductance @ 1kHz | 0,03 mH |
| Half.space Efficiency |
- |

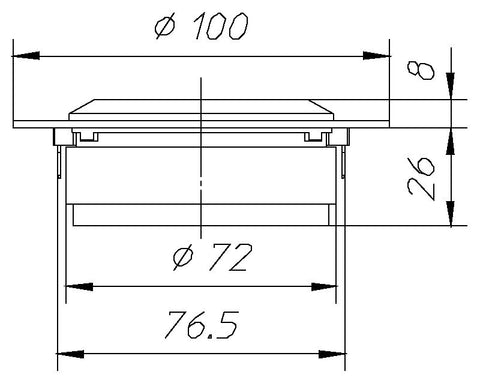

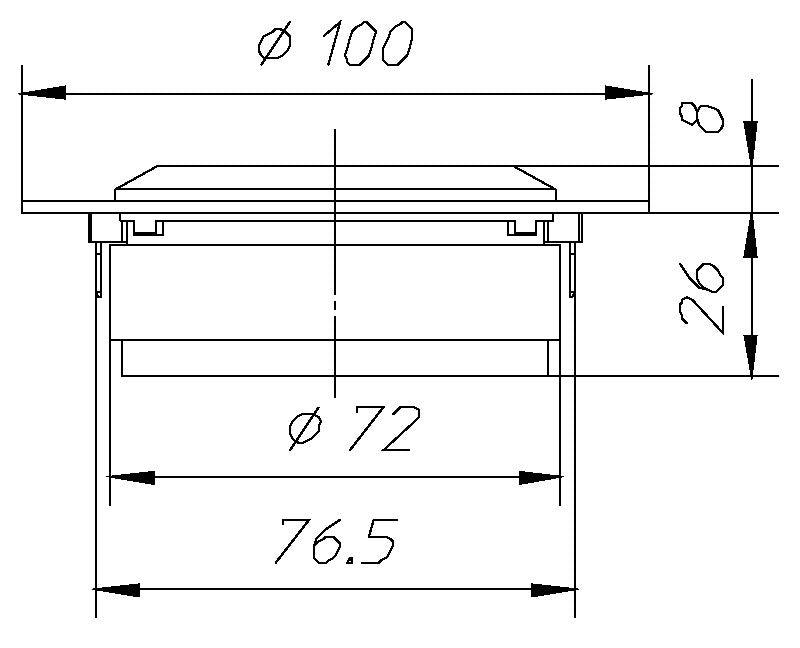

Mounting
| Overall Diameter | 100 mm - 3,94 in |
| Baffle Cutout Diameter | 77 mm - 3,03 in |
| Flange and Gasket Thickness | 8 mm - 0,31 in |
| Total Depth | 34 mm - 1,34 in |
| Bolt Circle Diameter | 88 mm - 3,46 in |
| Bolt Holes Quantity and Diameter | 4 / 5 mm - 0,2 in |
| Net Weight | 0,64 Kg - 1,41 lb |
| Shipping Units | 12 Pcs |
